Protecta FR Putty Pad

NZ Building Code compliant AS1530.4-2014 & AS4072.1-2005
Acoustic Rating STC 68

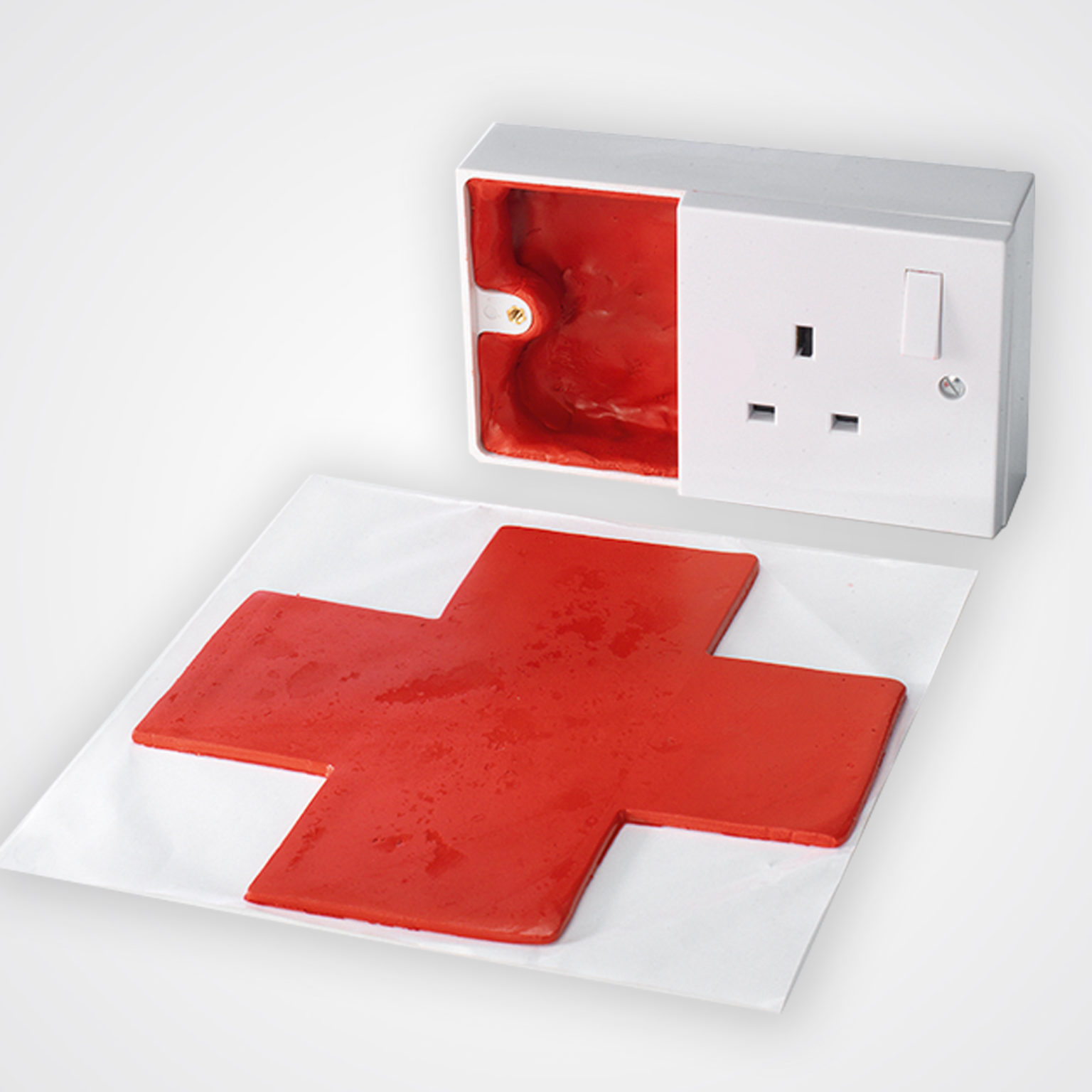

Protecta Putty Pads have been designed to maintain the fire resistance of plasterboard walls where these are breached by electrical switches, sockets and flush boxes (including plastic), even when installed back-to-back.

The Putty Pad is a non-setting flexible intumescent pad based on a silicone polymer with additional fire retardant additives. The Putty Pad can be fitted inside or on the outside of the socket or switch box and in a fire they form a robust fire resistant char that prevents burn through at the location of electrical penetrations. Only 1 pad is required for each box and these can be any combination of internal/external fix to allow more flexibility when fixing plasterboard linings.

The Putty Pad can be supplied in sizes to suit electrical boxes or as a rectangle and are supplied on a quick release paper. The Putty Pad is also an ideal product for smoke-sealing around penetration openings.


Product available for purchase

Buy product

Associated Downloads

Below are the downloads available. Please tick the ones you would like to receive and complete your details and select how you would like the files delivered to you. Alternatively you can click on the individual download name to view it now.

Systems using this product

  Select All
  Protecta FR Putty Pad Technical Data Sheet
  Protecta FR Putty Pad Installation Instructions
  Protecta FR Putty Pad Video - Inside Socket
  Protecta FR Putty Pad Video - Socket Back
  Protecta FR Putty STC Rating
  Protecta FR Putty Safety Data Sheet
  Protecta FR Putty Technical Data Sheet
  Protecta FR Putty VOC GOLD
  Protecta FR Putty AS1530.4 Assessment
