3M Duct Wrap 615+, Fire-rated Plasterboard or Concrete Wall

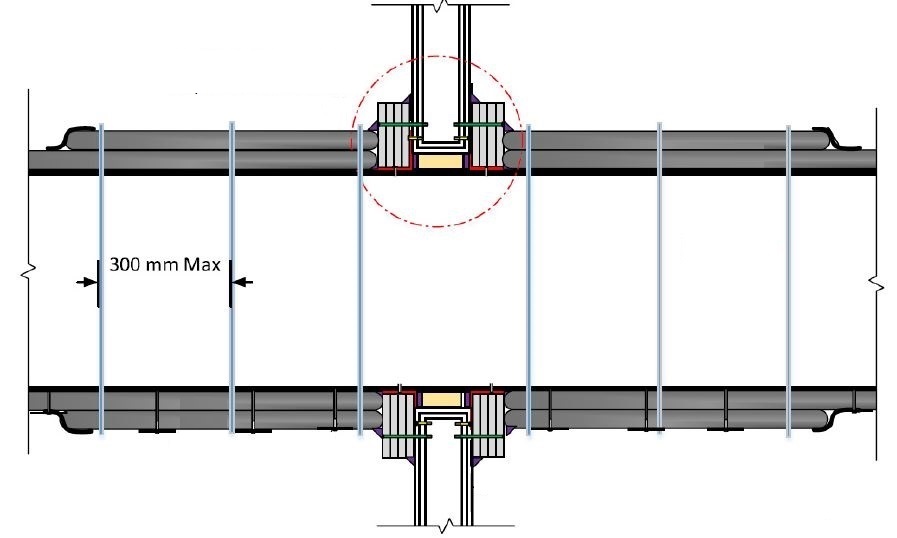

Duct (up to 1250 x 1000mm) through a fire-rated plasterboard or concrete wall. Protection from internal fire (up to 120mins) or external fire (up to 180mins). 3M Duct Wrap 615+ single layer for duct and double layer adjacent to penetration. Plasterboard collar with fillet of 3M Fire Barrier CP25WB sealant.



System ID #: 230
Max Fire Rating: 180
Max Thermal Rating: Up to 180
Size: Up to 1250mm wide x 1000mm high

System products available for purchase

Buy products

Associated Products & Downloads

Below are the downloads available. Please tick the ones you would like to receive and complete your details and select how you would like the files delivered to you. Alternatively you can click on the individual download name to view it now.

  Select All
  System diagram
  3M Duct Wrap 615+ Wall Spec Sheet
  3M Duct Wrap 615+ Access Door Design Specification Sheet

3M™ Fire Barrier Duct Wrap 615+
  Duct Wrap 615 Description
  3M Fire Barrier Duct Wrap 615+ Data Sheet
  3M Fire Barrier Duct-Wrap 615+ Design Spec Sheet Hatch
  3M Fire Barrier Duct-Wrap 615+ Multi-Layer System Installation Guide
  3M Fire Barrier Duct-Wrap 615+ Single Layer System Installation Guide
  3M Fire Barrier Duct Wrap 615+ AS1530.4-2014 Conformity Declaration
  3M Fire Barrier Duct Wrap 615+ Regulatory Data Sheet
  Duct Wrap 615+ Safety Data Sheet
  3M Duct Wrap 615 BRANZ FAR 4812 AS1530.4 Fire Certificate
  3M Duct Wrap 615+ BRANZ FAR 4812 AS1530.4
  3M Duct Wrap 615+ CSIRO FCO-3273 AS1530.4
