3M Putty Concrete Wall Copper Pipe

Copper Pipe (up to 200mm) through a concrete or masonry wall. 3M Mouldable Putty wrapped around pipe for depth of the wall. Then fill annular space with 20mm 3M Putty both sides of wall backed with mineral wool in the centre of the wall. FRR -/120/90 using 3M Duct Wrap 615+. Max FRR -/120/90



Products

Details

System ID #: 503
Max Fire Rating: 120 mins
Max Thermal Rating: Up to 90 mins with Duct Wrap 615+
Size: Copper pipe up to 200mm diam

System products available for purchase

Buy products

Build specifications

Add to specification

Associated Products & Downloads

Below are the downloads available. Please tick the ones you would like to receive and complete your details and select how you would like the files delivered to you. Alternatively you can click on the individual download name to view it now.

  Select All
  System diagram
  FC503 3M Putty Concrete Wall Copper Pipe Tech Drawing
  3M Fire Barrier Mouldable Putty AS1530.4 CSIRO RIR FCO3220

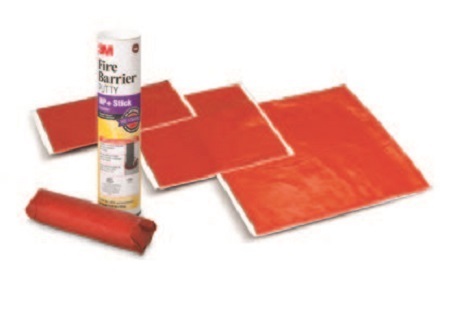

3M™ Fire Barrier Mouldable Putty
  3M Fire Barrier Mouldable Putty Data Sheet
  Mouldable Putty Safety Data Sheet
  3M FM Product Approval
  3M LEED Cert - Environmental Quality VOC
  3M Fire Barrier Mouldable Putty AS1530.4 CSIRO RIR FCO3220
