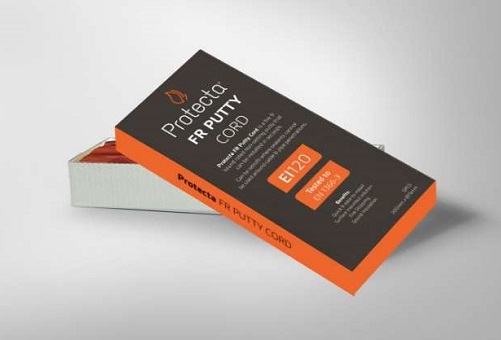

Protecta FR Putty Cord Pbd or Concrete Wall Single Cable

Single cable up to 80mm (electrical with copper or aluminium conductor, fibre optic, data) through a plasterboard or concrete wall. Max FRR -/120/120. Approved in single layer systems with lower FRR. Does not require annular space. Blank seal up to 14mm diameter. Click here for Tested System Tech Drawing.




System ID #: 312
Max Fire Rating: 120
Max Thermal Rating: 120
Size: Single cable up to 80mm

System products available for purchase

Buy products

Build specifications

Add to specification

Associated Products & Downloads

Below are the downloads available. Please tick the ones you would like to receive and complete your details and select how you would like the files delivered to you. Alternatively you can click on the individual download name to view it now.

  Select All
  System diagram
  FC312 Protecta FR Putty Cord Plasterboard Wall Single Cable Tech Drawing
  Protecta FR Putty AS1530.4 Assessment

Protecta FR Putty Cords
  Protecta FR Putty Cord Technical Data Sheet
  Protecta FR Putty Cord Installation Instructions
  Protecta FR Putty Cord Safety Data Sheet
  Protecta FR Putty Cord Video - Installation for small gaps
  Protecta FR Putty STC Rating
  Protecta FR Putty Technical Data Sheet
  Service penetrations through one side of gypsum wall
  Protecta FR Putty AS1530.4 Assessment
