Allproof Fire Plate - Allproof Collars

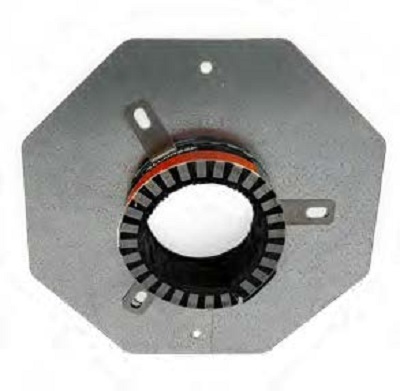

The Fire plate systems has been created to cater to a Cast-in Rocket fitting that creates a void on the underside of a flat slab substrate in a 50mm or 100mm FWG location. The 2x piece Fire Plate covers the void created by the Rocket fitting in the flat slab. It is fixed in place to secure the plates to the slab with an ALLFC placed over the Fire Plate and fixed through the cut out tab positions. The shape of the Fire Plate allows flexibility for changing the position when other services are connected or are around the FWG location.
