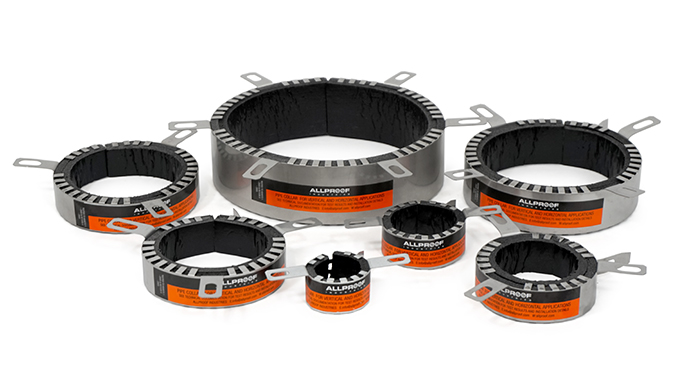

Allproof Fire Collar Composite Floor Plastic Pipe

PVC (up to 100mm), PEX (16mm), PP-R (32mm) pipes through a composite floor (from 70mm). Allproof fire collar fixed to underside of slab. Max FRR -/120/120



System ID #: 220
Max Fire Rating: 120
Max Thermal Rating: 120
Size: PVC to100mm, PEX 16mm, PP-R 32mm

System products available for purchase

Buy products

Build specifications

Add to specification

Associated Products & Downloads

Below are the downloads available. Please tick the ones you would like to receive and complete your details and select how you would like the files delivered to you. Alternatively you can click on the individual download name to view it now.

  Select All
  System diagram
  FC220 Allproof Collar Composite Floor Plastic Pipe Tech Drawing
  Allproof Passive Fire Products - BRANZ Appraisal

Allproof Low Profile Fire Collar
  Allproof Fire Collars Data Sheet
  Allproof Fire Collar Sizes
  Allproof Passive Fire Products - BRANZ Appraisal
  Allproof Passive Fire Technical Manual-Electrical
  Allproof Passive Fire Technical Manual-Plumbing
