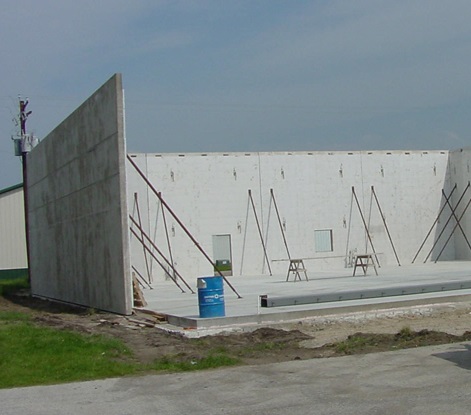

Protecta FR IPT Concrete Tilt Slab Wall

Joint seal in concrete tilt slab walls, vertical or horizontal. Gaps up to 30mm wide. Walls from 64mm thickness. Seal both sides with Protecta FR IPT sealant 12.5mm deep backed with 12.5mm rock wool - or 25mm IPT sealant if easier. Rated for external use - can be exposed to weathering.




System ID #: 540
Max Fire Rating: 120
Max Thermal Rating: 120
Size: Up to 30mm gaps

System products available for purchase

Buy products

Build specifications

Add to specification

Associated Products & Downloads

Below are the downloads available. Please tick the ones you would like to receive and complete your details and select how you would like the files delivered to you. Alternatively you can click on the individual download name to view it now.

  Select All
  System diagram
  FC540 Protecta FR IPT Concrete Tilt Slab Wall Tech Drawing
  Protecta FR IPT Sealant AS1530.4 Assessment
  Protecta FR IPT Joint Seal Video

Protecta FR IPT Sealant
  Protecta FR IPT Technical Data Sheet
  Protecta FR IPT Safety Data Sheet
  Protecta FR IPT CoC
  Protecta FR IPT DoP
  Protecta FR IPT Joint Seal Video
  Protecta FR IPT STC Rating
  Protecta FR IPT VOC LEED Certificate
  Protecta FR IPT VOC Report
  Protecta FR IPT VOC Summary
  VOC SCAQMD rule 1168
  Protecta FR IPT Sealant AS1530.4 Assessment
  Type X - Durability and Serviceability EOTA TR 024
