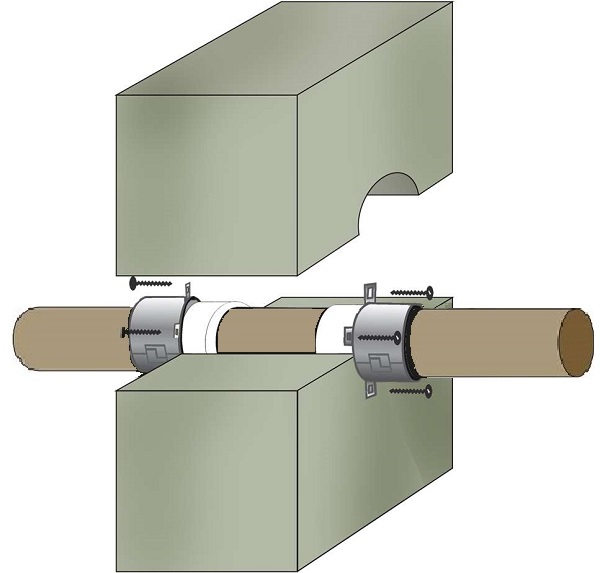

Bare copper or steel pipes up to 54mm through a 100mm concrete, AAC or masonry wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Zero smoke leakage up to 200Pa. Max FRR -/120/90
System ID #: 616
Max Fire Rating: 120
Max Thermal Rating: 90
Size: Copper or steel pipes up to 54mm
