Protecta FR Collar Single Layer Standard Plasterboard Wall

Combustible pipe 32-160mm (PVC, PE, PP) through a plasterboard wall with single layer Standard board 10mm or 13mm. Protecta collar both sides, with Protecta FR Acrylic sealant. Oversize collars permitted. Minimum wall thickness 51mm. Zero smoke leakage up to 200Pa. Max FRR -/60/30



Products

Details

System ID #: 480
Max Fire Rating: 60
Max Thermal Rating: 30
Size: 32-160mm diam

System products available for purchase

Buy products

Build specifications

Add to specification

Associated Products & Downloads

Below are the downloads available. Please tick the ones you would like to receive and complete your details and select how you would like the files delivered to you. Alternatively you can click on the individual download name to view it now.

  Select All
  System diagram
  FC480 Protecta FR Collar Pbd Wall Single Layer Standard Tech Drawing
  Protecta FR Collars in Standard Gib Board

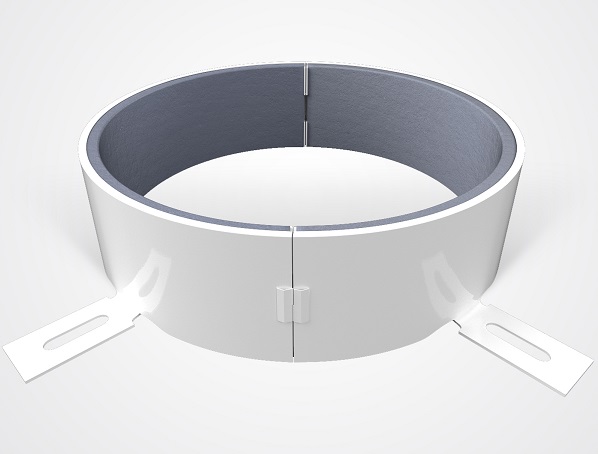

Protecta FR Collar
  Protecta FR Collar Technical Data Sheet
  Protecta FR Collar Installation Instructions
  Protecta FR Collar Certificate of Constancy
  Protecta FR Collar Environmental Product Declaration (EPD)
  Protecta FR Collar Manufacturing Sizes
  Protecta FR Collar STC Rating
  Protecta FR Collar Safety Data Sheet
  Protecta FR Collar Timber Infill Approval
  Protecta FR Collar Video - Concrete
  Protecta FR Collar Video - Plastic pipe in flexible wall
  Protecta FR Collar AS1530.4 Assessment
  Protecta FR Collar Assessment Warringtonfire FAS 190125 (inc HBX glues)
  Protecta FR Collar EJ 210707 200mm Collar 35mm Pipe Wall Thickness
  Protecta FR Collar EJ 210708 200mm Collar Oversize on 180mm Pipe
  Protecta FR Collar Oversize Approval AS1530.4
