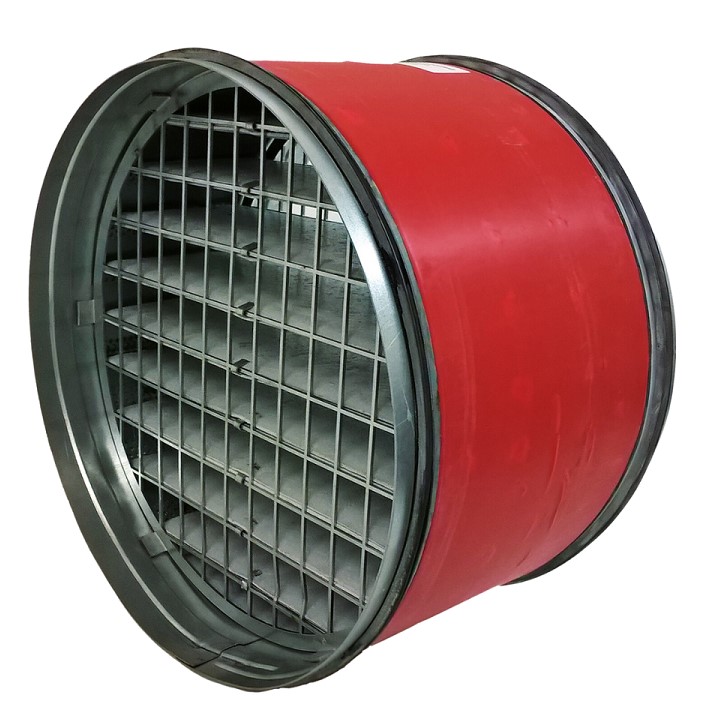

Protecta FR Damper Plasterboard Wall

Damper (round or rectangular) through a plasterboard wall min 100mm thick, core-drilled sealed with FR Acrylic or in aperture up to 1200mm high with unlimited width sealed with Protecta FR Board.



System ID #: 477
Max Fire Rating: 120
Max Thermal Rating: 120
Size: Up to 1250mm round or 1700x1200mm rectangular

System products available for purchase

Buy products

Build specifications

Add to specification

Associated Products & Downloads

Below are the downloads available. Please tick the ones you would like to receive and complete your details and select how you would like the files delivered to you. Alternatively you can click on the individual download name to view it now.

  Select All
  System diagram
  FC477 Protecta FR Damper Plasterboard Tech Drawing
  Protecta FR Damper AS1530.4 Assessment

Protecta FR Dampers
  Protecta FR Damper Technical Data Sheet
  Protecta FR Damper Installation Instructions
  Protecta FR Damper Safety Data Sheet
  Protecta FR Damper VOC Certificate
  Protecta FR Damper AS1530.4 Assessment
