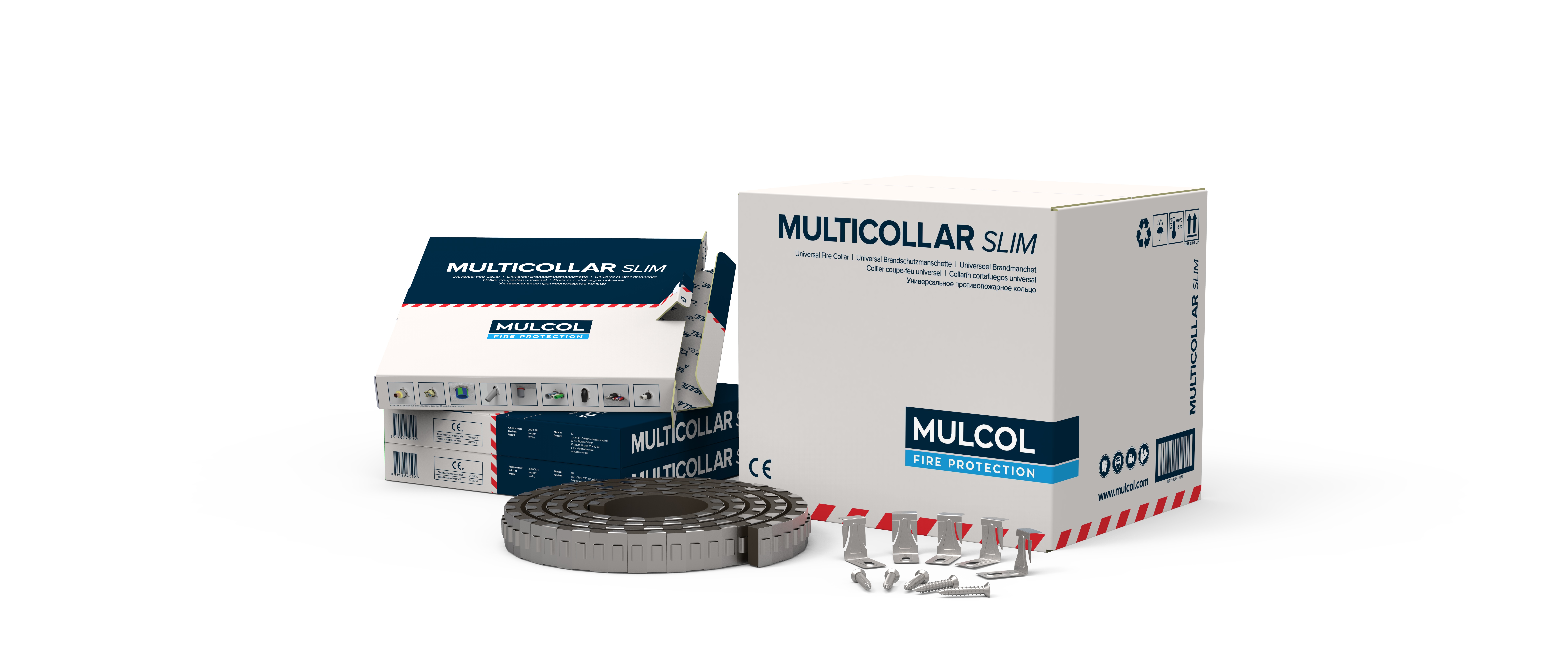

Mulcol Multicollar Slim
The Multicollar Slim is a compact, 30mm-high universal fire collar featuring a stainless steel band with 174 separable segments and a high-performance graphite inlay. It expands to seal pipe penetrations during fire and, when combined with Mulcol Multimastic SP, provides a smoke-proof seal. Fully assessed to AS 1530.4:2014 and AS 4072.1:2005, it offers straightforward installation with Multiclips and Multiscrews included. Suitable for a wide range of service penetrations, the Multicollar Slim is a reliable, all-in-one firestopping solution.
Key Features:
- 30mm-high stainless steel collar with 174 adjustable segments
- High-performance graphite inlay that expands in fire to form a seal
- Smoke-proof when used with Multimastic SP
- Assessed to AS 1530.4:2014 and AS 4072.1:2005
- Easy one-person installation with included Multiclips and Multiscrews
- Universal fit for a range of service penetrations including plastic pipes, soundproof pipes, composite pipes, metal pipes, air-conditioning pipes, and electrical services
Installation Highlights:
- Simple, one-person installation process
- Multiclips and Multiscrews supplied for quick fixing
- Easily adjustable collar size by separating segments on site
- Suitable for both new builds and retrofit applications
- Compatible with a wide range of pipe materials and sizes
- Supports a range of installation configurations, including half-collar options
