Use the Firestop Centre System Selector below to identify the most appropriate firestopping system for your project. Select the criteria that correspond to your firestopping requirements to view relevant options.

Additional features include:

  • The ability to create a custom Firestopping Specification — refer to the Specification Instructions Specification Instructions for guidance.
  • Filtering results by selecting a product from the Product dropdown menu.
  • Searching by system FC number by entering one or more FC numbers in the System ID box, separated by commas.
Substrate:
Wall
Floor
Ceiling
Plasterboard
Concrete
CLT
Korok/Speedpanel
Hebel
Shaftwall

Penetrant:
Metal Pipe
Copper/Brass Pipe
Cables
Cable Trays
Conduits
Pair Coils
Elect Dist Box
Joints and Gaps
Steel
Ducts
Blanks
Hatches
Naked Wall
Plastic Pipe
PEX Pipe
AluPEX Pipe

Product :
Required Fire Rating :
System ID(s) :
Search Systems

FIRESTOP Ultra Vertical Linear Gap - 1 x 16mm PB Wall

System ID FC513

Service Penetration: Vertical linear gap, 5mm up to 20mm
Substrate: 1 x 16mm Plasterboard (double stud) or concrete wall, min. 180mm thick
Max FRR: -/90/90

FIRESTOP Ultra Horizontal Linear Gap - 1 x 16mm PB Wall

System ID FC516

Service Penetration: Horizontal linear gap up to 40mm to underside of concrete floor slab.
Substrate: 1 x 16mm Plasterboard (double stud) or concrete wall, min. 180mm thick
Max FRR: -/90/90

FIRESTOP Ultra Blank Aperture - 2 x 13mm PB Wall

System ID FC517

Service Penetration: Blank aperture up to 40mm
Substrate: 2 x 13mm Plasterboard or concrete wall, min. 116mm thick
Max FRR: -/120/120

FIRESTOP Ultra Vertical Linear Gap Seal - 2 x 13mm PB Wall

System ID FC347

Service Penetration: Vertical gaps up to 20mm
Substrate: 2 x 13mm Plasterboard or concrete wall, min. 116mm thick
Max FRR: -/120/120

FIRESTOP Ultra Horizontal Linear Gap - 2 x 13mm PB Wall

System ID FC512

Service Penetration: Horizontal linear gap up to 40mm to underside of concrete floor slab, with 25mm electric cable bundle (optional)
Substrate: 2 x 13mm Plasterboard or concrete wall, min. 116mm thick
Max FRR: -/120/120

FIRESTOP Ultra Linear Gap - Concrete Wall

System ID FC292

Service Penetration: Linear gaps - up to 40mm horizontally and 50mm vertically
Substrate: Concrete wall, min. 180mm thick
Max FRR: -/360/360

FIRESTOP Ultra Metal Pipe - 2 x 13mm PB Wall

System ID FC504

Service Penetration: Copper pipe (100-150mm) and steel pipe (32mm)
Substrate: 2 x 13mm Plasterboard or concrete wall, min. 116mm thick
Max FRR: -/120/120

FIRESTOP Ultra Metal Pipe - Concrete Wall

System ID FC757

Service Penetration: DN 40mm steel pipe
Substrate: Concrete wall, min. 180mm thick
Max FRR: -/360/360

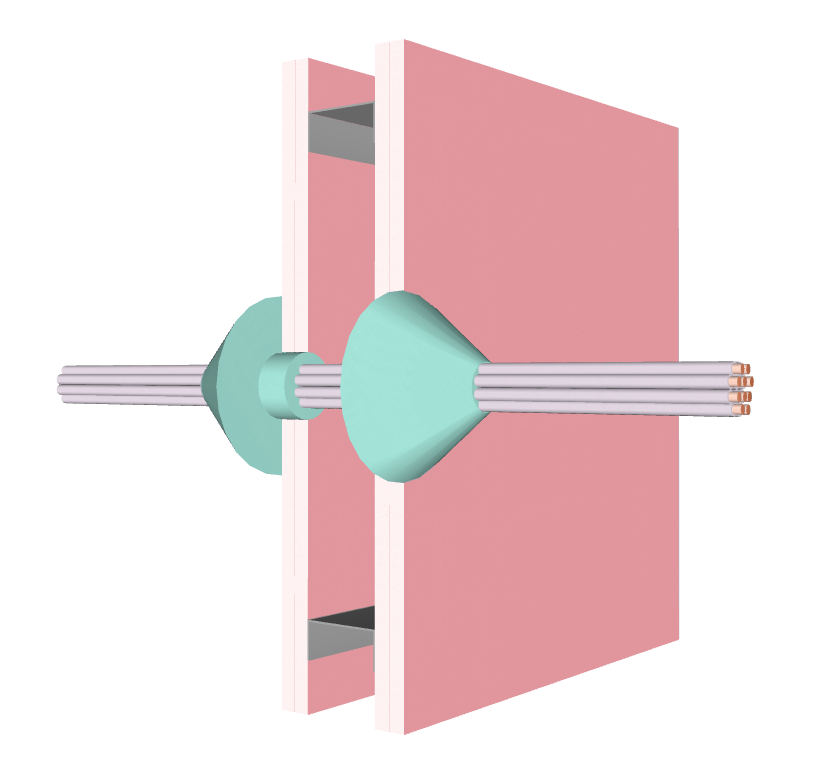

FIRESTOP Ultra Electric Cable Bundle - 2 x 13mm PB Wall

System ID FC557

Service Penetration: Single cable and cable bundle (TPS and Cat6) up to 35mm
Substrate: 2 x 13mm Plasterboard or concrete wall, min. 116mm thick
Max FRR: -/120/120

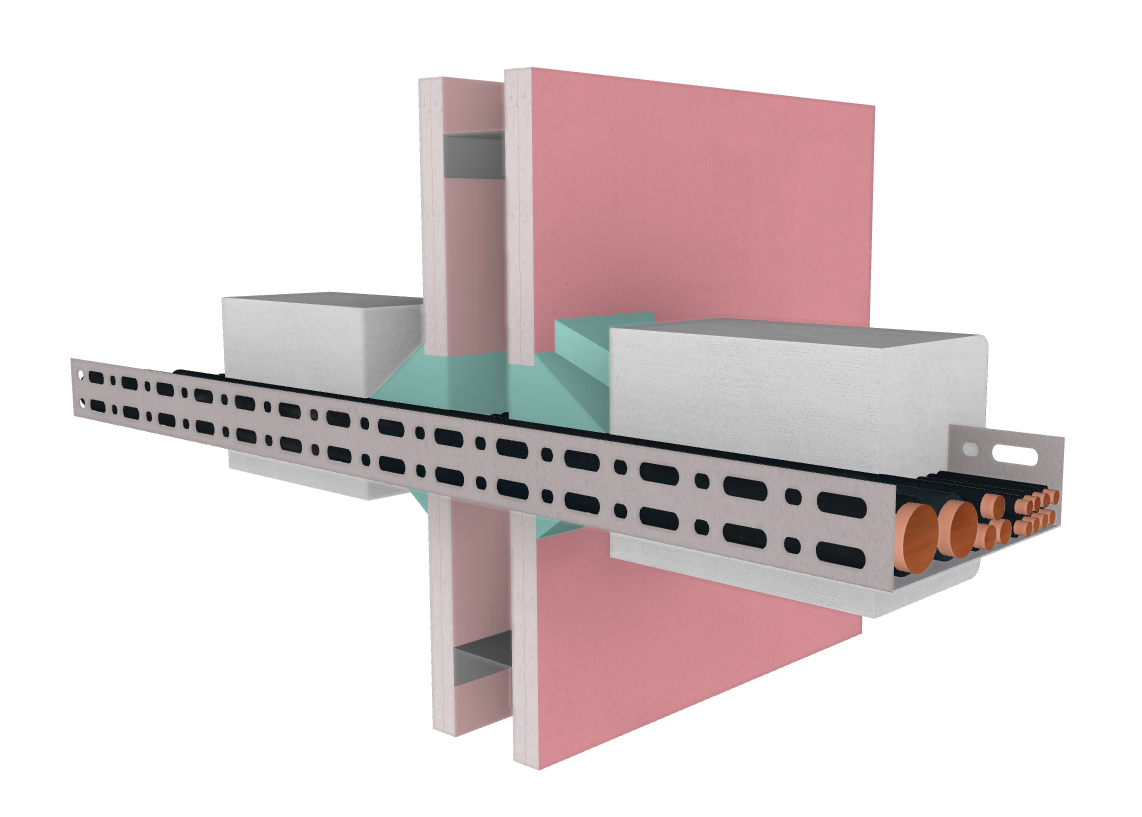

FIRESTOP Ultra Cable Tray - 2 x 13mm PB Wall

System ID FC521

Service Penetration: Cable tray with D1 or D2 cable configuration
Substrate: 2 x 13mm Plasterboard or concrete wall, min. 116mm thick
Max FRR: -/120/120

FIRESTOP Duct Wrap-38 Concrete Wall Circular Duct Internal or External Fire Core-drilled Aperture

System ID FC560

Circular duct up to 1,000mm diam in a core-drilled aperture through a concrete or masonry wall, 100mm thick or greater. FIRESTOP Duct Wrap-38 single or double layer. Internal and external fire. Annular gap 10-30mm. Up to FRR 120/120/90

FIRESTOP Duct Wrap-38 Concrete Wall Circular Duct One-way Internal Fire Core-drilled Aperture

System ID FC232

Circular duct up to 1,000mm diam in a core-drilled aperture through a concrete or masonry wall, 100mm thick or greater. One-way system. FIRESTOP Duct Wrap-38 single or double layer on non-fire side only. Useful for situations where a grease duct opens to the fire source (kitchen). Steel angle both sides, but no wrap or collar required from fire source to the first fire-wall. Internal fire only. Annular gap 10-30mm. Up to FRR 120/120/120.

FIRESTOP Duct Wrap-38 Concrete Wall Circular Duct One-way Internal Fire Oversize Aperture

System ID FC718

Circular duct up to 1,000mm diam in a square/rectangular aperture through a concrete or masonry wall, 120mm thick or greater. One-way system. FIRESTOP Duct Wrap-38 single or double layer on non-fire side only. Useful for situations where a grease duct opens to the fire source (kitchen). Steel angle both sides, but no wrap or collar required from fire source to the first fire-wall. Internal fire only. Annular gap 20-170mm. Up to FRR 120/120/120

FIRESTOP Duct Wrap-38 Concrete Wall Circular Duct One-Way External Fire Core-drilled Aperture

System ID FC556

Circular duct up to 1,000mm diam penetrating a concrete/masonry wall (100mm or greater). One-way system. FIRESTOP Duct Wrap-38 on fire side only. Steel angle both sides. Useful for situations where an air duct traverses a potential fire source (machine room). No wrap or collar required outside the fire source. External fire only. Annular gap 10-30mm. Up to FRR 120/120/90.

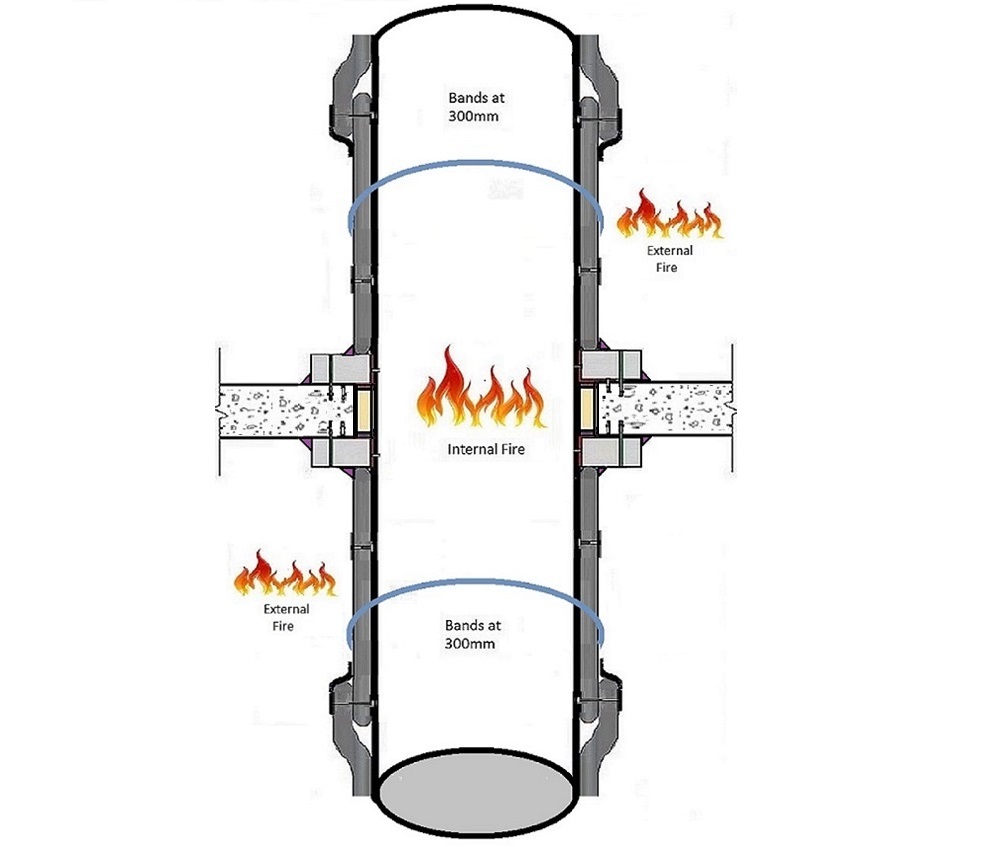

FIRESTOP Duct Wrap-38 Concrete Floor Circular Duct Internal or External Fire Core-Drilled Aperture

System ID FC716

Circular duct up to 1,000mm diam in a core-drilled aperture through a concrete floor, 100mm thick or greater. FIRESTOP Duct Wrap-38 single or double layer. Internal or external fire. Annular gap 10-30mm. Up to FRR 120/120/90

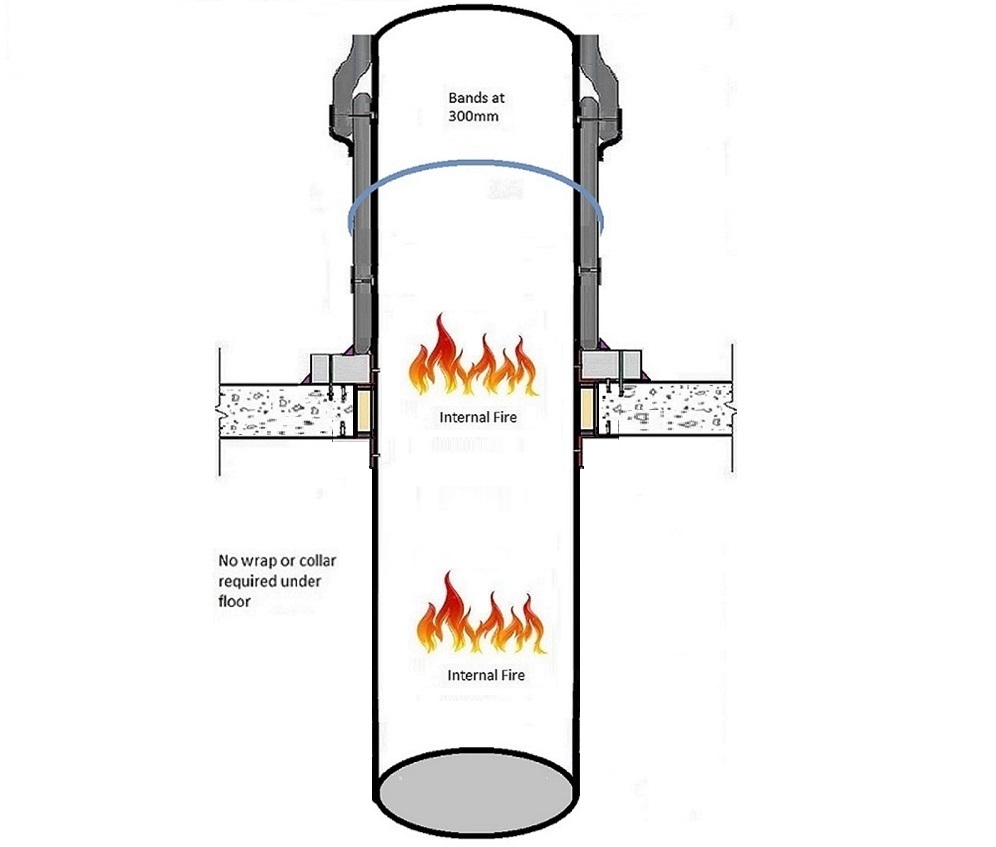

FIRESTOP Duct Wrap-38 Concrete Floor Circular Duct Internal Fire Core-Drilled Aperture

System ID FC719

Circular duct up to 1000mm diam in a core-drilled aperture penetrating a concrete floor, 100mm thick or greater. FIRESTOP Duct Wrap-38 single or double layer on top side only. Internal fire. Annular gap 10-30mm. Up to FRR 120/120/120

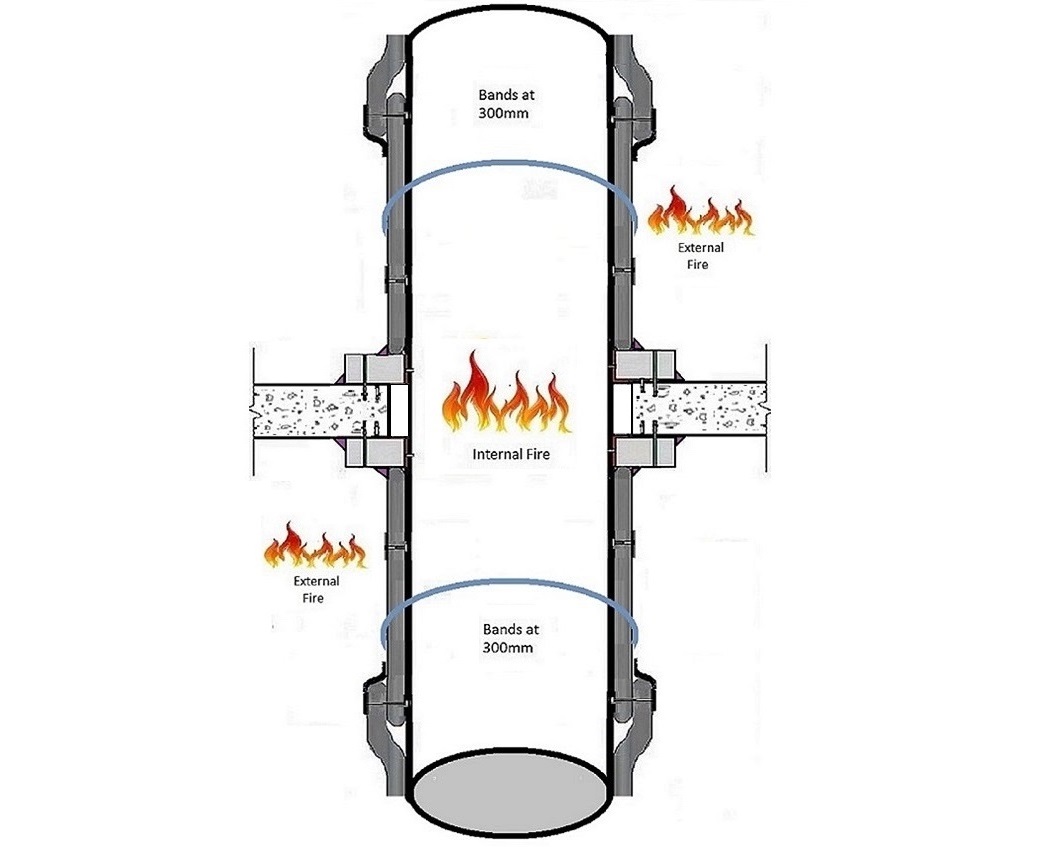

FIRESTOP Duct Wrap-38 Concrete Floor Circular Duct Internal or External Fire Oversize Aperture

System ID FC715

Circular duct up to 1,000mm diam in a rectangular or square aperture through a concrete floor, 100mm thick or greater. FIRESTOP Duct Wrap-38 single or double layer. Internal or external fire. Annular gap up to 200mm. Up to FRR 120/120/90

FIRESTOP Duct Wrap-38 Concrete Floor Circular Duct Internal Fire Oversize Aperture

System ID FC503

Circular duct up to 1000mm diam in a square or core-drilled aperture penetrating a concrete floor, 120mm thick or greater. FIRESTOP Duct Wrap-38 single or double layer on top side only. Internal fire. Annular gap 20-170mm. Up to FRR 120/120/120

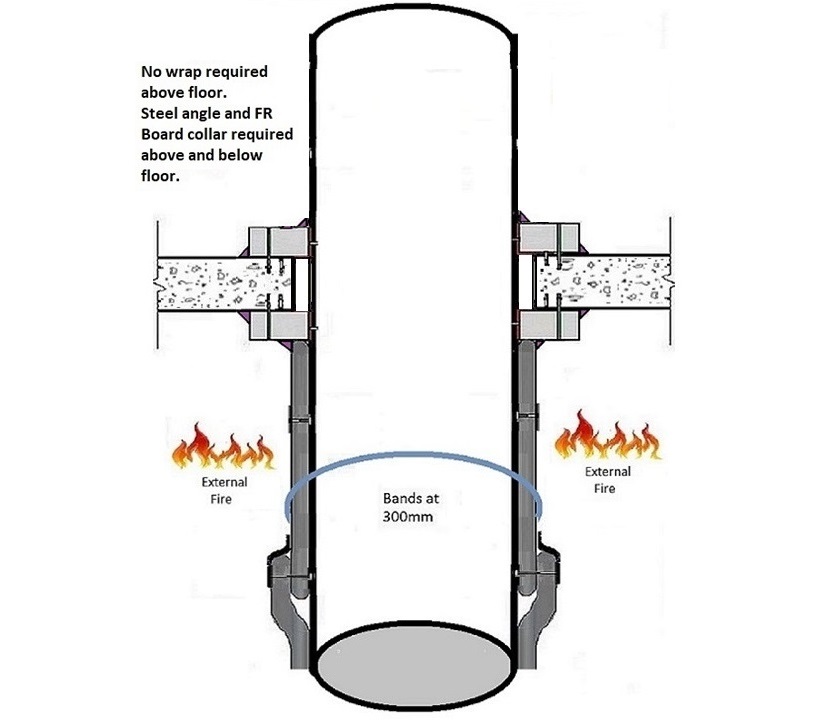

FIRESTOP Duct Wrap-38 Concrete Floor Circular Duct External Fire Oversize Aperture

System ID FC717

Circular duct penetrating a concrete floor, 100mm thick or greater. FIRESTOP Duct Wrap-38 single or double layer. External fire. Annular gap up to 200mm. Up to FRR 120/120/90

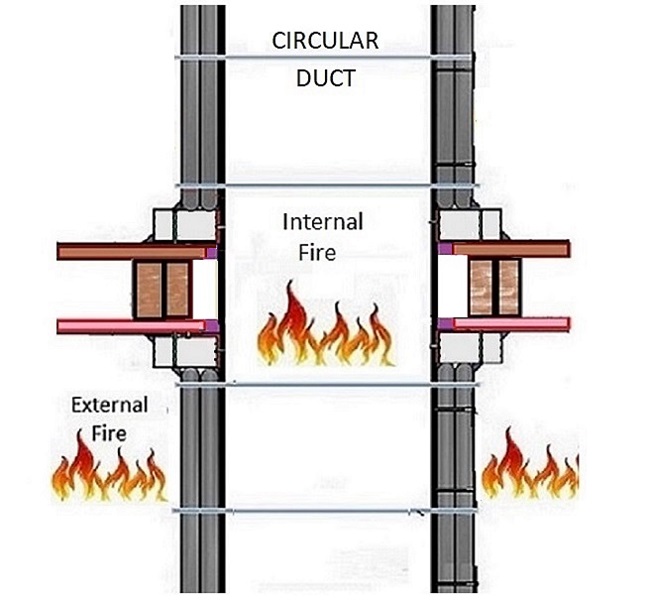

FIRESTOP Duct Wrap-38 Floor-Ceiling Circular Duct Internal or External Fire

System ID FC307

Circular duct penetrating a 60 minute floor/ceiling system (1x16mm plasterboard ceiling). FIRESTOP Duct Wrap-38 single or double layer. Internal or external fire. Annular gap 10-30mm. Up to FRR 60/60/60

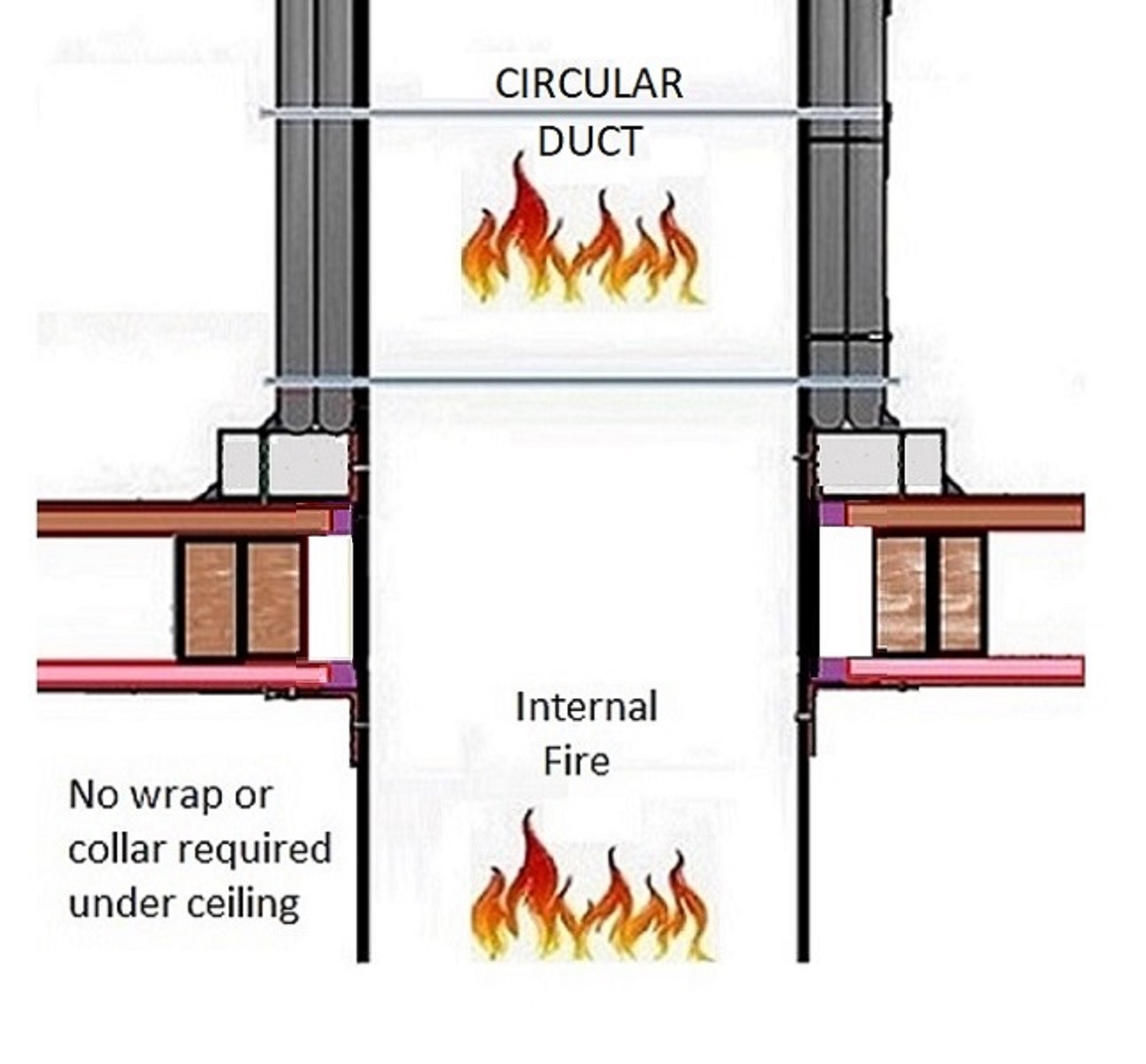

FIRESTOP Duct Wrap-38 Floor-Ceiling Circular Duct Internal Fire

System ID FC294

Circular duct penetrating a floor/ceiling system (1x16mm plasterboard ceiling). FIRESTOP Duct Wrap-38 with extra layers at penetration. Internal fire. Annular gap 10-30mm. Up to FRR 60/60/60

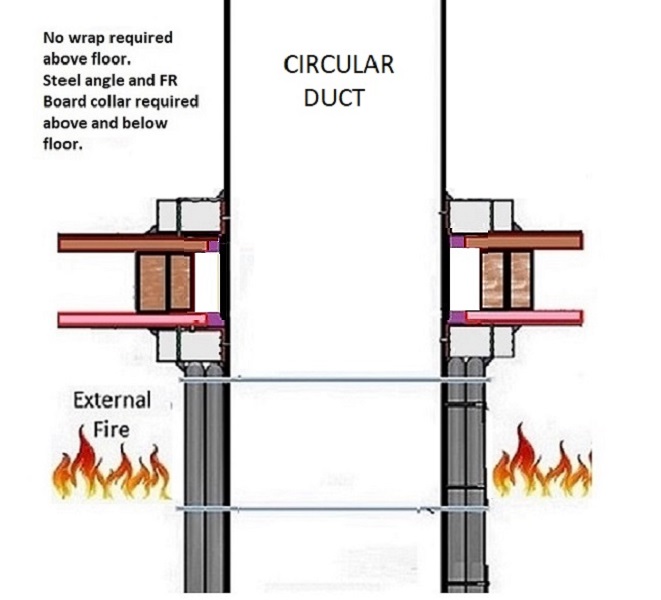

FIRESTOP Duct Wrap-38 Floor-Ceiling Circular Duct External Fire

System ID FC410

Circular Circular duct penetrating a floor/ceiling system (1x16mm plasterboard ceiling). FIRESTOP Duct Wrap-38 with extra layers at penetration. External fire. Annular gap 10-30mm. Up to FRR 60/60/60
