System Selector

Use the Firestop Centre System Selector below to identify the most appropriate firestopping system for your project. Select the criteria that correspond to your firestopping requirements to view relevant options.

Additional features include:

  • The ability to create a custom Firestopping Specification — refer to the Specification Instructions Specification Instructions for guidance.
  • Filtering results by selecting a product from the Product dropdown menu.
  • Searching by system FC number by entering one or more FC numbers in the System ID box, separated by commas.
Substrate:
Wall
Floor
Ceiling
Plasterboard
Concrete
CLT
Korok/Speedpanel
Hebel
Shaftwall

Penetrant:
Metal Pipe
Copper/Brass Pipe
Cables
Cable Trays
Conduits
Pair Coils
Elect Dist Box
Joints and Gaps
Steel
Ducts
Blanks
Hatches
Naked Wall
Plastic Pipe
PEX Pipe
AluPEX Pipe

Product :
Required Fire Rating :
System ID(s) :
Search Systems

Mulcol Multicollar Slim Plastic Pipe - PB or Concrete Wall

System ID FC528

Service Penetration: PVC, PE or PP pipe up to 315mm
Substrate: 2 x 13mm Plasterboard or concrete wall, min. 100mm thick
Max FRR:  -/120/120

Mulcol Multicollar Slim Interrupted Insulated Plastic Pipe - PB or Concrete Wall

System ID FC251

Service Penetration: PVC pipe up to 110mm with interrupted elastomeric pipe insulation
Substrate: 2 x 13mm Plasterboard or concrete wall, min. 100mm thick
Max FRR:  -/120/120

Mulcol Multicollar Slim Insulated Plastic Pipe - PB or Concrete Wall

System ID FC143

Service Penetration: PVC, PE or PP plastic pipe up to 110mm with continuous elastomeric pipe insulation
Substrate: 2 x 13mm Plasterboard or concrete wall, min. 100mm thick
Max FRR:  -/120/90

Mulcol Multicollar Slim Angled Plastic Pipe - PB or Conc Wall

System ID FC530

Service Penetration: Angled PVC, PE or PP pipe up to 125mm
Substrate: 2 x 13mm Plasterboard or concrete wall, min. 100mm thick
Max FRR:  -/120/120

Mulcol Multicollar Slim Plastic Pipe with Elbow - PB or Concrete Wall

System ID FC478

Service Penetration: PVC or PP pipe with elbow
Substrate: 2 x 13mm Plasterboard or concrete wall, min. 100mm thick
Max FRR:  -/120/90

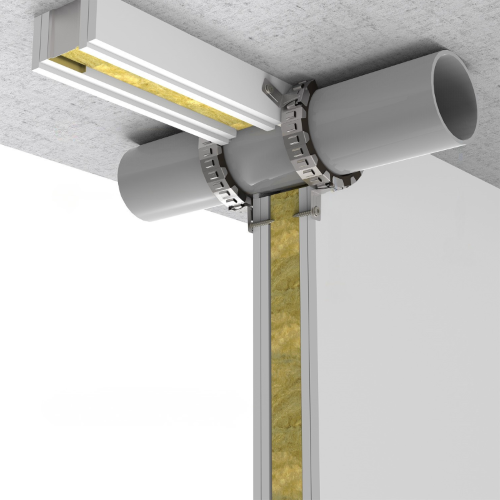

Mulcol Multicollar Slim - Plastic pipes Against Floor - PB or Conc Wall

System ID FC428

Service Penetration: PVC, PE and PEX pipe up to 110mm against floor
Substrate: 2 x 13mm Plasterboard or concrete wall, min. 100mm thick
Max FRR:  -/90/90

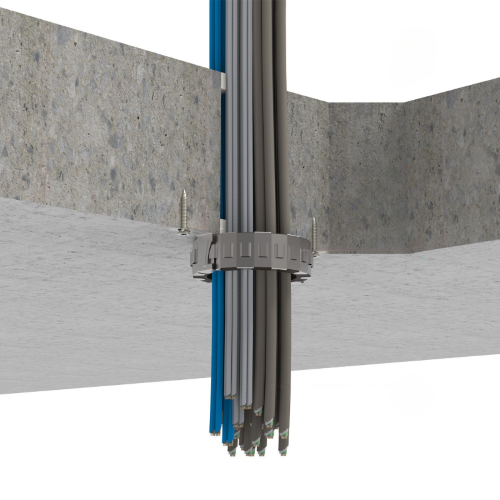

Mulcol Multicollar Slim - Electric Cable Bundle - Conc Floor

System ID FC424

Service Penetration: Electric cable bundle up to 80mm
Substrate: Concrete floor, min. 150mm thick
Max FRR:  -/120/120

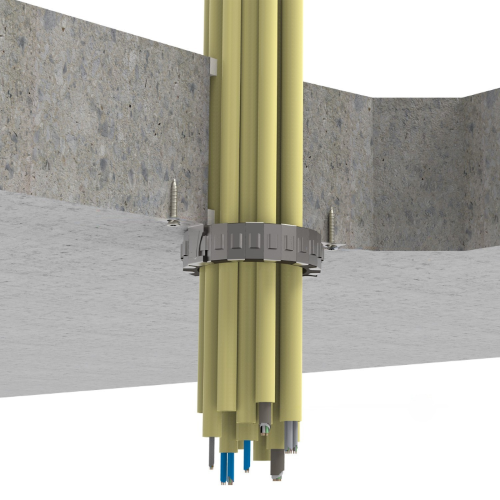

Mulcol Multicollar Slim - Electric Conduit Bundle - Conc Floor

System ID FC445

Service Penetration: PVC or flexible PE pipe/conduit bundle with or without cables
Substrate: Concrete floor, min. 150mm thick
Max FRR:  -/120/120

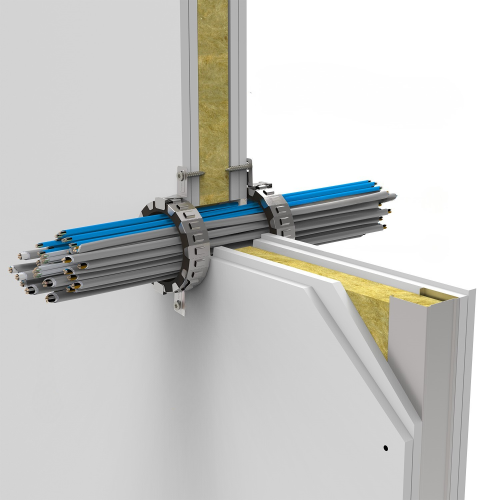

Mulcol Multicollar Slim - Electric Cable Bundle - PB or Conc Wall

System ID FC774

Service Penetration: Electric cable bundle up to 100mm
Substrate: 2 x 13mm Plasterboard or concrete wall, min. 100mm thick
Max FRR:  -/120/120

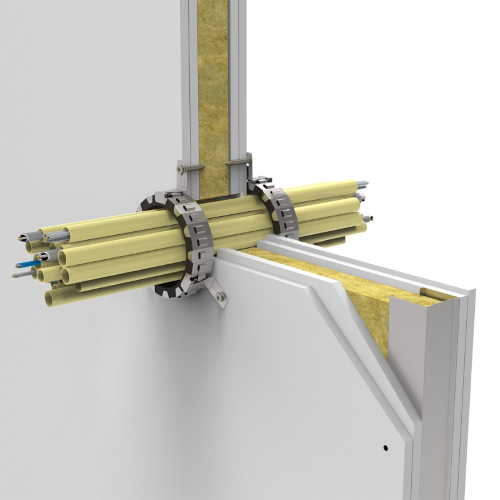

Mulcol Multicollar Slim Conduit Bundle - PB or Conc Wall

System ID FC429

Service Penetration: PVC conduit/pipe up to 25mm in bundles up to 100mm with or without cables
Substrate: 2 x 13mm Plasterboard or concrete wall, min. 100mm thick
Max FRR:  -/120/90

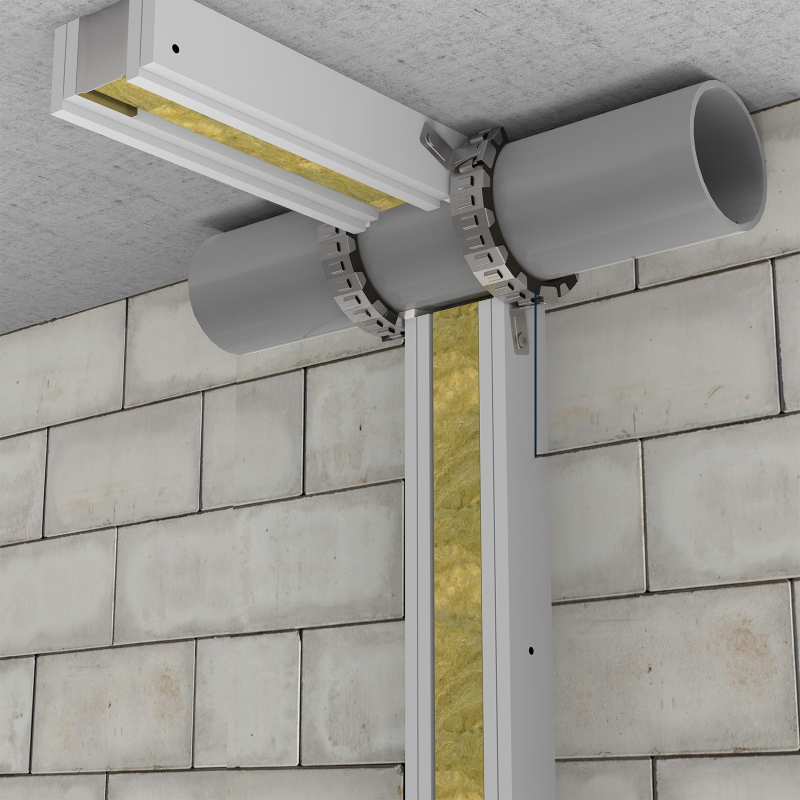

Mulcol Multicollar Slim - Plastic Pipe In Corner - PB or Conc Wall

System ID FC430

Service Penetration: PVC pipe up to 110mm in wall corner
Substrate: 2 x 13mm Plasterboard or concrete wall, min. 100mm thick
Max FRR:  -/120/90

Mulcol Multicollar Slim Plastic Pipe with Elbow against Wall - PB or Concrete Wall

System ID FC803

Service Penetration: PVC, PE or PP pipe up to 110mm with elbow against wall
Substrate: 2 x 13mm Plasterboard or concrete wall, min. 100mm thick
Max FRR:  -/120/120
