Allproof Fire Collar Concrete Floor Hollow Core Plastic Floor Waste

PVC plastic floor waste up to 100mm through a 150mm hollow core concrete floor. Allproof fire collar fixed to underside of slab. Max FRR -/90/90

Products

Details

System ID #: 731
Max Fire Rating: 90
Max Thermal Rating: 90
Size: PVC floor waste up to 100mm

System products available for purchase

Buy products

Build specifications

Add to specification

Associated Products & Downloads

Below are the downloads available. Please tick the ones you would like to receive and complete your details and select how you would like the files delivered to you. Alternatively you can click on the individual download name to view it now.

  Select All

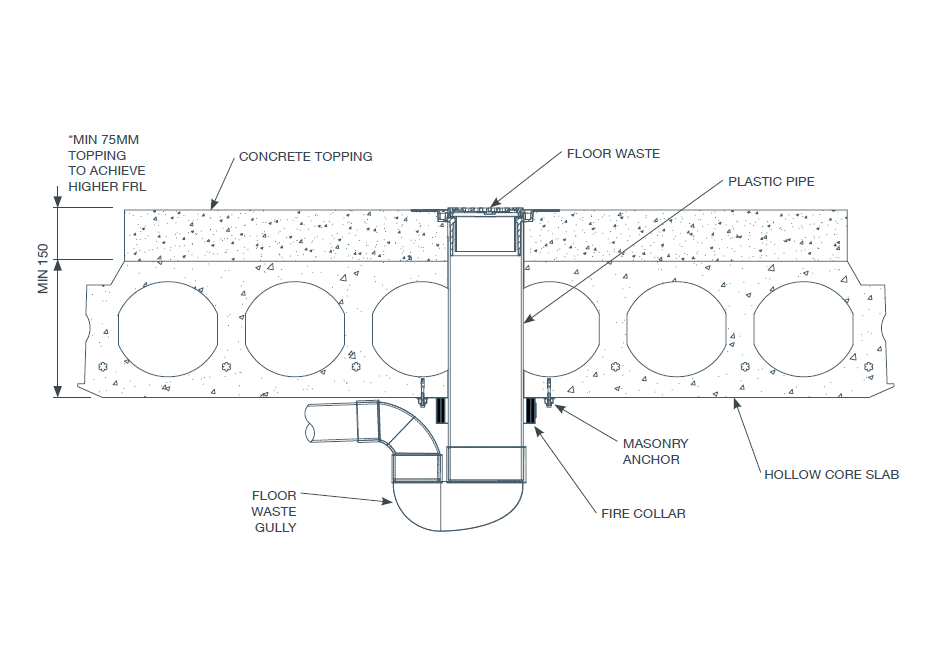

  System diagram
  FC731 Allproof Collar Concrete Floor Hollow Core Waste Drawing
  Allproof Passive Fire Products - BRANZ Appraisal

Allproof Low Profile Fire Collar
  Allproof Fire Collars Data Sheet
  Allproof Fire Collar Sizes
  Allproof MAS310 Sealant Safety Data Sheet
  Allproof Passive Fire Products - BRANZ Appraisal
  Allproof Passive Fire Technical Manual-Electrical
  Allproof Passive Fire Technical Manual-Plumbing
