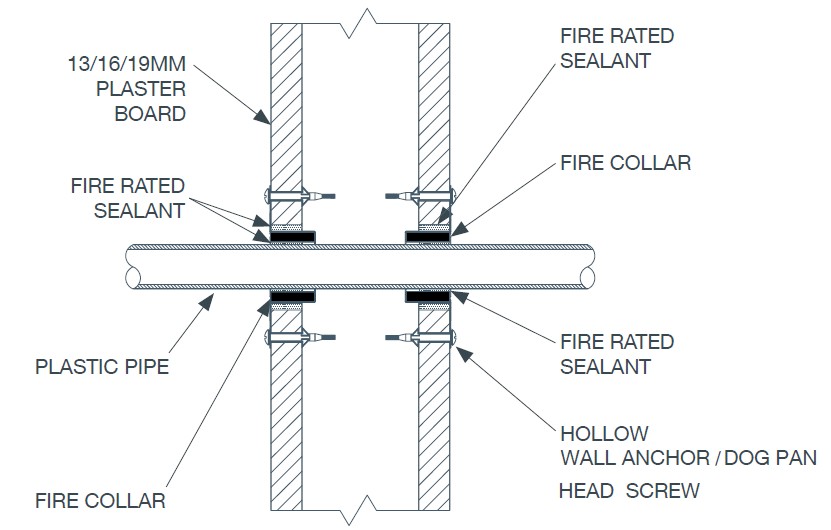

Allproof Fire Collar (In-Wall) Plastic Pipe - PB Wall
Service penetration: Plastic pipes (PVC, PP-R, PB, PEX & PEX/AL/PE) up to 100mm
Substrate: 1 x 13mm (STD or FR), 16mm, or 19mm plasterboard or concrete wall, min. 90 - 130mm thick
Max FRR: -/120/90
Products
Details
System ID #: 738
Max Fire Rating: 120
Max Thermal Rating: 90
Size: Various plastic pipes up to 100mm
Build specifications
Downloads
Below are the downloads available. Please tick the ones you would like to receive and complete your details and select how you would like the files delivered to you. Alternatively you can click on the individual download name to view it now.
