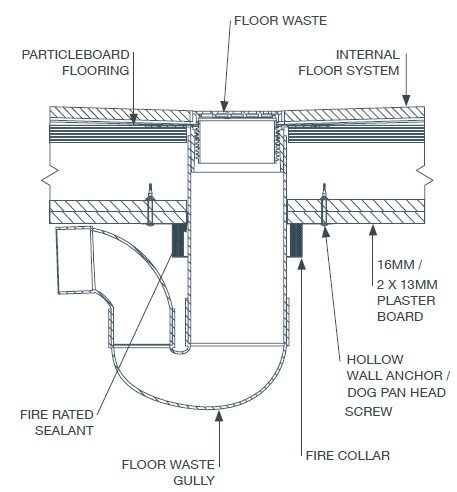

Allproof Fire Collar PVC Floor Waste - 2 x 13mm or 1 x 16mm PB Ceiling
Service Penetration: PVC floor waste (80mm or 100mm)
Substrate: 2 x 13mm or 1 x 16mm Plasterboard ceiling structure, min. 225-235mm thick
Max FRR: -/90/60
Products
Details
System ID #: 736
Max Fire Rating: 90 minutes
Max Thermal Rating: 60 minutes
Size: PVC Floor Waste 80 or 100mm diam
Build specifications
Downloads
Below are the downloads available. Please tick the ones you would like to receive and complete your details and select how you would like the files delivered to you. Alternatively you can click on the individual download name to view it now.
