Allproof Fire Collar Plasterboard Wall 1x16mm or 1x19mm Plastic Pipe

Plastic pipes of various types (PVC, PEX, HDPE, PP-R) through a single layer 16mm or 19mm plasterboard wall. Allproof Fire Collar and intumescent sealant to both sides of the wall. Max FRR -/120/120



Products

Details

System ID #: 522
Max Fire Rating: 120 minutes
Max Thermal Rating: 120 minutes
Size: Various Plastic pipes uip to 150mm diam

Build specifications

Add to specification

Downloads

Below are the downloads available. Please tick the ones you would like to receive and complete your details and select how you would like the files delivered to you. Alternatively you can click on the individual download name to view it now.

  Select All

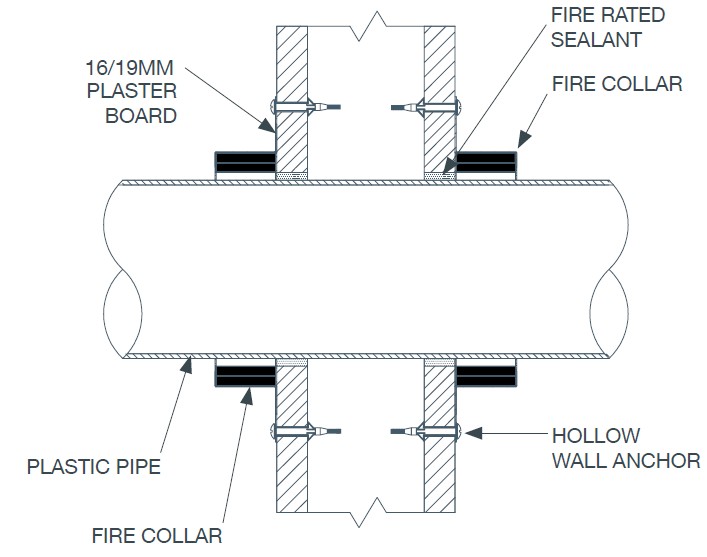

  System diagram
  FC522 Allproof Collar Plasterboard Wall 1x16mm 1x19mm Plastic Pipe Tech Drawing
  Allproof Fire Collars Data Sheet
  Allproof Passive Fire Technical Manual-Plumbing
