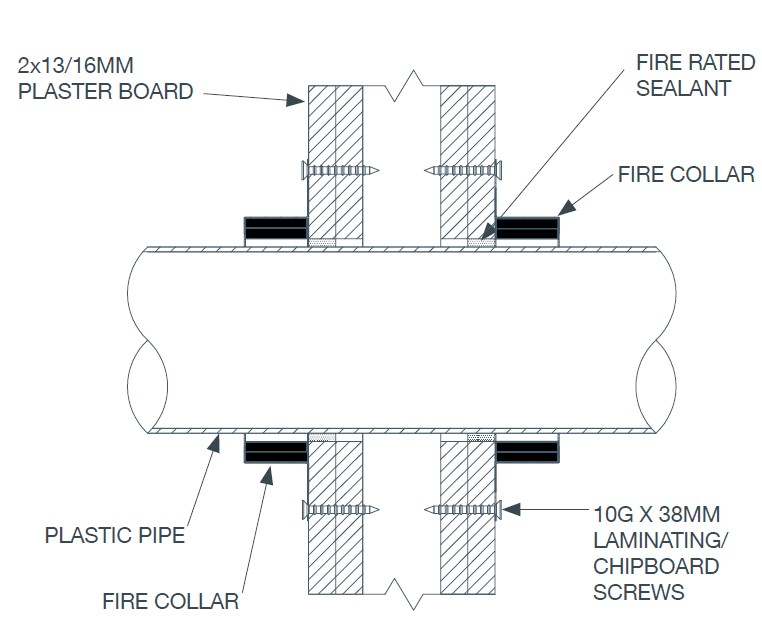

Allproof Fire Collar Plastic Pipe - 2x13mm/2x16mm PB Wall
Service Penetration: Plastic pipes (PVC, PEX, PEX/AL/PEX) up to 100mm
Service Penetration: 2 x 13mm or 2 x 16mm plasterboard or concrete wall, min. 116-128mm thick
Max FRR: -/120/120
Products
Details
System ID #: 742
Max Fire Rating: 120
Max Thermal Rating: 120
Size: Various plastic pipes up to 100mm
Build specifications
