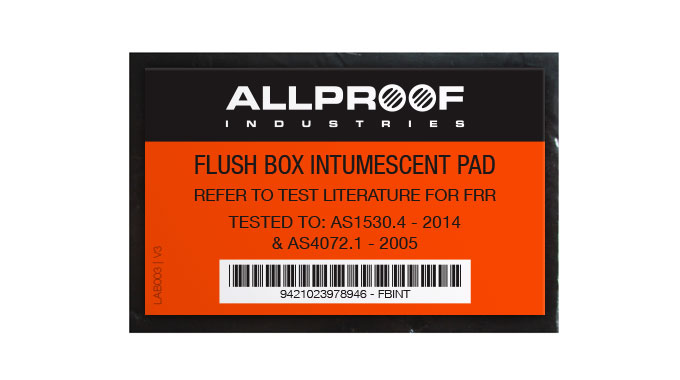

Allproof FBINT Flush Box Pad - 1x13/19mm PB Wall

Service Penetration: Metal electric flush box (single, double or back-to-back)
Substrate: 1 x 13mm (STD or FR) or 19mm plasterboard wall, min. 90mm thick
Max FRR: -/120/90

Products

Details

System ID #: 630
Max Fire Rating: 120
Max Thermal Rating: 90
Size: Single or double flush box

Build specifications

Add to specification

Downloads

Below are the downloads available. Please tick the ones you would like to receive and complete your details and select how you would like the files delivered to you. Alternatively you can click on the individual download name to view it now.

  Select All
  System diagram
  FC630 Allproof Flush Box Pad Pbd Wall Tech Drawing
  Allproof Flush Box Pads Data Sheet
  Allproof Passive Fire Technical Manual-Electrical
