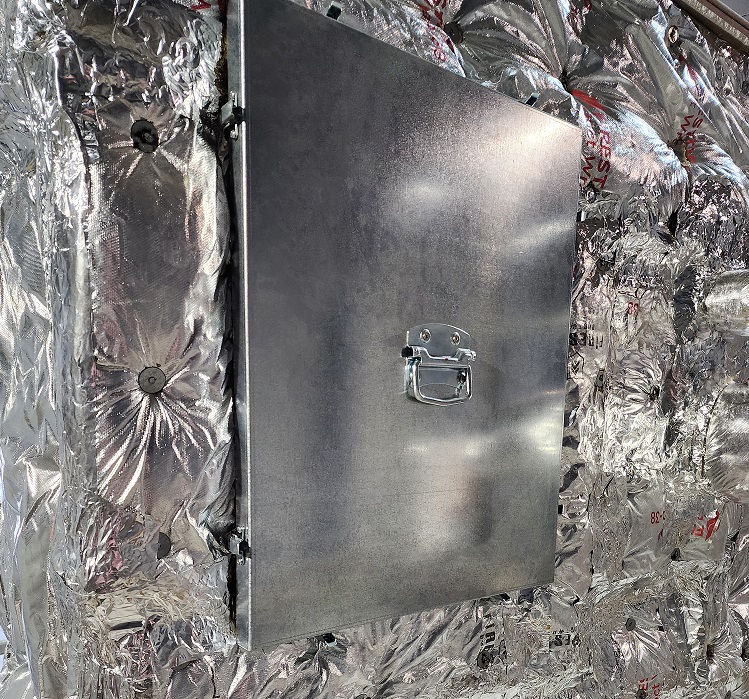

FIRESTOP Duct Access Hatch (Rectangular Duct)

FIRESTOP Duct Access Hatches for rectangular ducts have been tested with FIRESTOP Duct Wrap for internal and external fire in horizontal and vertical orientations. Unique design eliminates need for a separate non-fire hatch.  Max FRR 120/120/120

Products

Details

System ID #: 804
Max Fire Rating: 120 minutes
Max Thermal Rating: 120 minutes
Size: Hatch Lid sizes up to 790 x 640mm

Build specifications

Add to specification

Downloads

Below are the downloads available. Please tick the ones you would like to receive and complete your details and select how you would like the files delivered to you. Alternatively you can click on the individual download name to view it now.

  Select All
  System diagram
  FC804 FIRESTOP Duct Access Hatch (Rectangular Duct) Internal or External Fire Tech Drawing
  FIRESTOP Duct Hatch Installation Instructions
  FIRESTOP Duct Hatch Sizes
