Protecta EX Mortar Concrete Floor Plastic Pipe All Types

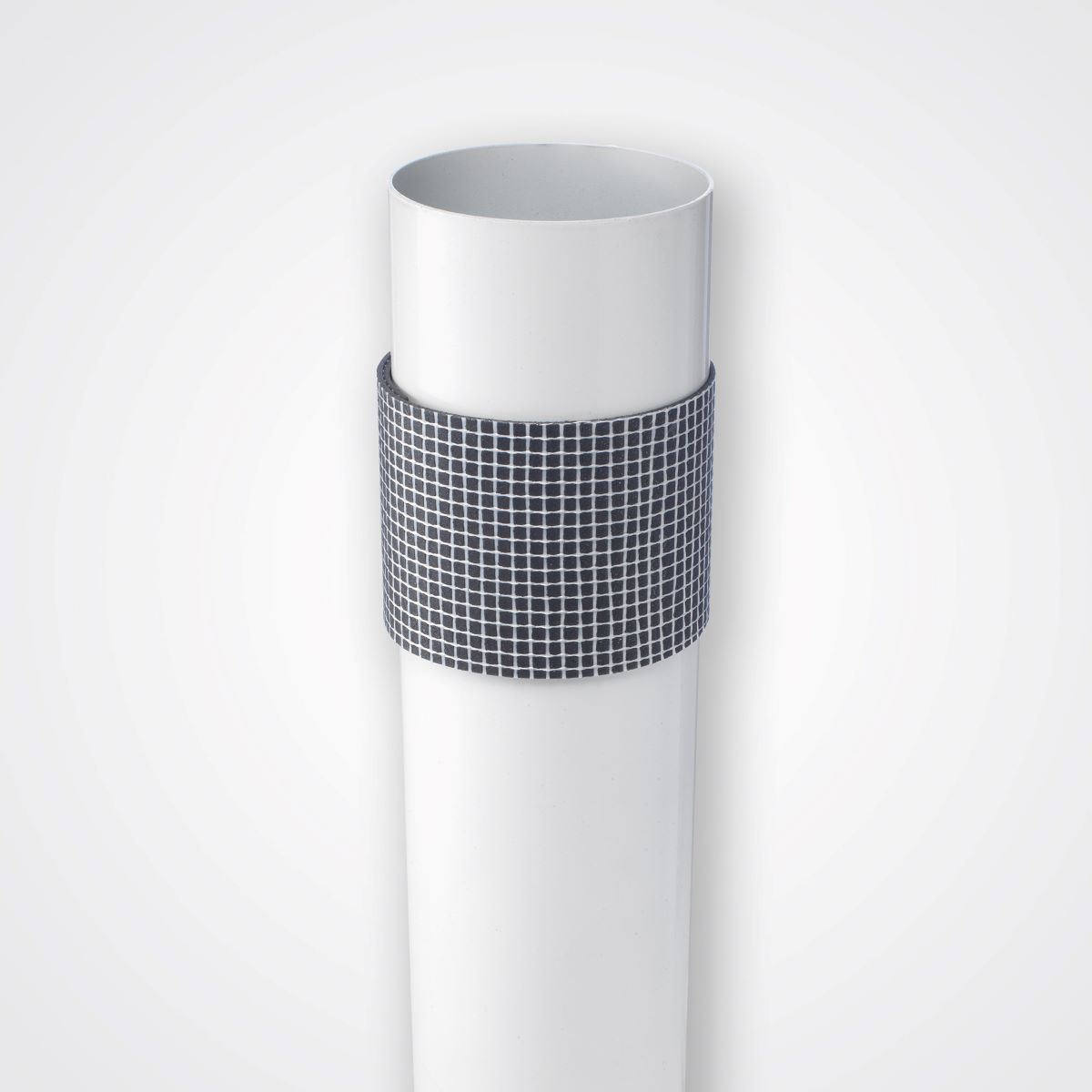

All types of plastic pipes (PVC, PP, PE, PEX, Aquatherm, Acoustic, Multilayer, etc) through a concrete floor. Protecta EX Mortar 100mm any position within floor with Protecta FR Pipe Wrap to bottom of seal. Min 30mm between pipes or edges. Max FRR -/240/240



Products

Details

System ID #: 206
Max Fire Rating: 240
Max Thermal Rating: 240
Size: All types of plastic pipes up to 400mm

Build specifications

Add to specification

Downloads

Below are the downloads available. Please tick the ones you would like to receive and complete your details and select how you would like the files delivered to you. Alternatively you can click on the individual download name to view it now.

  Select All
  System diagram
  FC206 Protecta EX Mortar Concrete Floor Plastic Pipe Tech Drawing
  Protecta EX Mortar AS1530.4 Assessment
