Protecta FR Board Naked Wall Timber Stud Unlined 90min

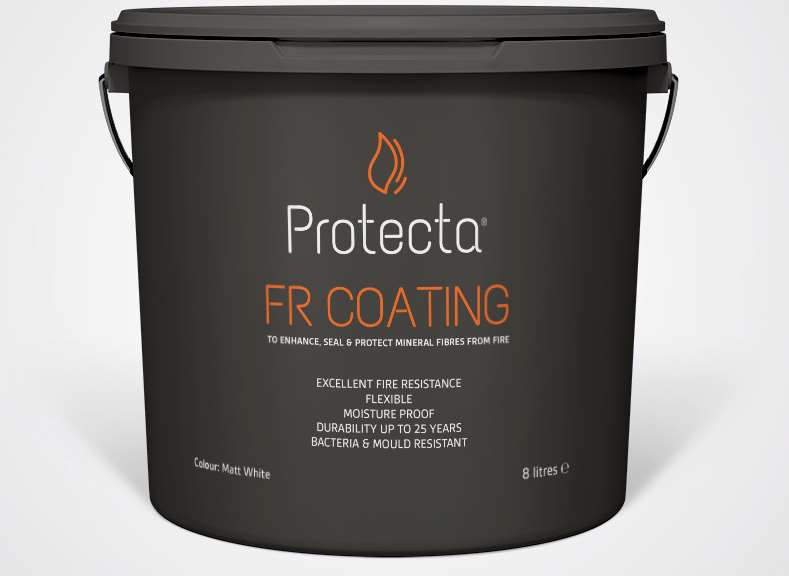

Timber studs at max 1224mm centres - no nogs required - with 80mm of Protecta FR Board 600 x 1200mm sheets friction-fitted into the stud cavities. Protecta FR Coating applied to all FR Board edges and exposed timber painted with Protecta Interior Paint FR-1. No lining required so wall can be constructed from one side. FRR -/90/60





Products

Details

System ID #: 729
Max Fire Rating: 90 minutes
Max Thermal Rating: 60 minutes
Size: Unlimited length

Build specifications

Add to specification

Downloads

Below are the downloads available. Please tick the ones you would like to receive and complete your details and select how you would like the files delivered to you. Alternatively you can click on the individual download name to view it now.

  Select All
  System diagram
  FC729 Protecta FR Board Naked Wall Timber Studs-no Lining 90min Tech Drawing
  Protecta FR Board Naked Wall AS1530.4-2014 Assessment
