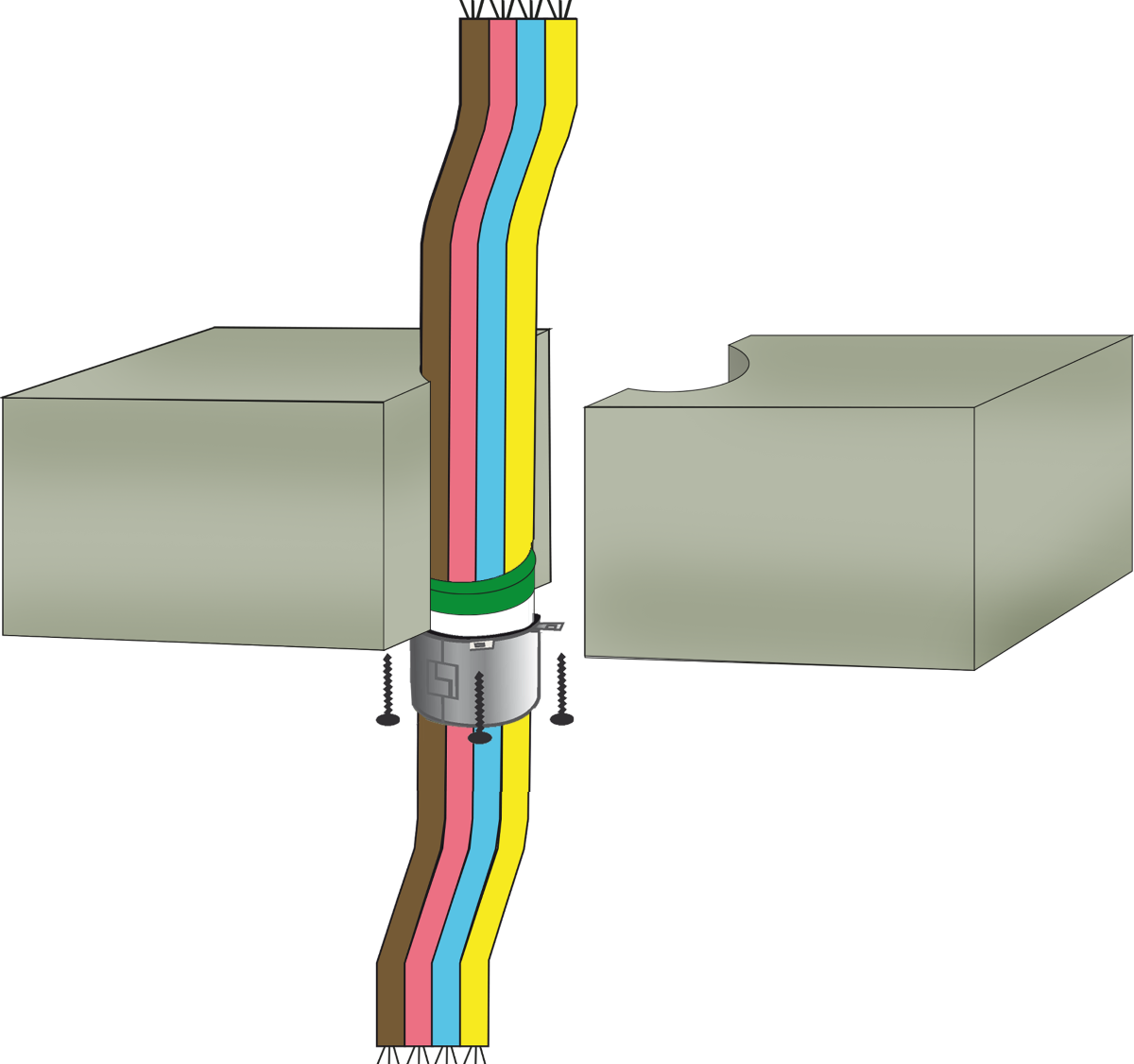

Cable bundles up to 160mm (electrical, data or fibre optic) through a 100mm concrete floor. Protecta collar to underside of floor with Protecta FR Acrylic sealant. Zero smoke leakage up to 200Pa with 10mm FR Acrylic. Max FRR -/180/180
System ID #: 442
Max Fire Rating: 180
Max Thermal Rating: 180
Size: Cable bundles up to 160mm diam
